BRF1020

32x5mm THREADED BUSBAR (1met)

R1,671.70
Supplier: Teknomega
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

Please note that prices of copper products are based on the London Metal Exchange and will vary from time to time and may not be in line with our printed catalogue.

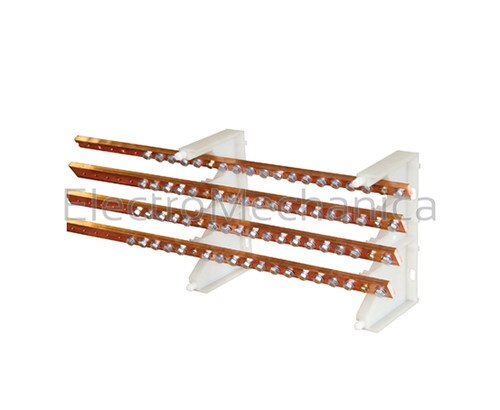

Threaded copper bars

General features:

  • Electrolytic copper Cu-ETP 99.90% (rounded corners)
  • Prepunched and threaded copper bars (ready for use) Threaded copper bars
  • Current (A) based on ÃŽ &qout;T temperature rise as per DIN 43671 (reference room temp 35°C)
DESCRIPTION Threaded copper bars
BETWEEN HOLES25 mm
CURRENT CAPACITY - Î &qout;T 30°C400A
CURRENT CAPACITY - Î &qout;T 50°C530A
SCREW ØM6
DIMENSIONS(H) 32 x (W) 5 x (L) 1met
