CFX 1115

24x10mm INSULATED FLEX BUSBAR 2M

R2,729.64
Supplier:

Please note that prices of copper products are based on the London Metal Exchange and will vary from time to time and may not be in line with our printed catalogue.

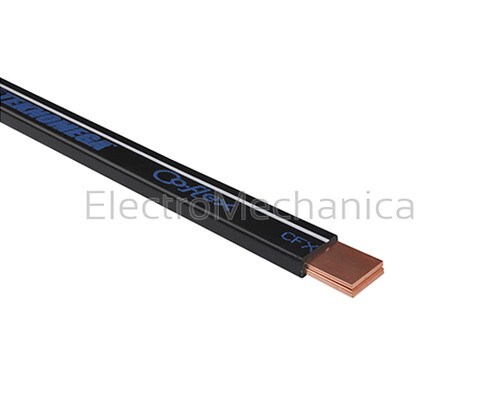

Coflex series - Insulated flexible busbars

COFLEX is designed with high conductivity electrolytic copper laminates (CuETP), protected within a durable highly resistant self extinguishing PVC insulation, guaranteeing excellent electrical insulation in aggressive high temperature environments.

General features:

  • Conductor: Electrolytic copper Cu-ETP 99.90% (laminate thickness 0.8 - 1.0 mm)
  • Insulation: Self-extinguishing PVC UL 94-V0 (thickness 2 mm)
  • Dielectric rigidity: 20 kV / mm
  • Max. elongation: 365%
  • Rated voltage: 1000 VAC / 1500 VDC
  • Working temperature: -40°C - +105°C
  • Standard length: 2 meters
SERIESCOFLEX series
DESCRIPTION Insulated flexible busbars
RATED VOLTAGE1000 VAC / 1500 VDC
STANDARD LENGTH2 meters
CONDUCTOR SIZE (MM) - WIDTH24
CONDUCTOR SIZE (MM) - NO OF LAMINATIONS10
CONDUCTOR SIZE (MM) - THICK1
CONDUCTOR SIZE (MM) - TOTAL THICKNESS10
CONDUCTOR SIZE (MM) - LENGTH2 meter
DIELECTRIC RIGIDITY20 kV / mm
MAXIMUM ELONGATION3.65
WORKING TEMPERATURE-40°C - +105°C
INSULATIONSelf-extinguishing PVC UL 94-V0 (thickness 2 mm)
CONDUCTORElectrolytic copper Cu-ETP 99.90% (laminate thickness 0.8 - 1.0 mm)
