ANE5-M6

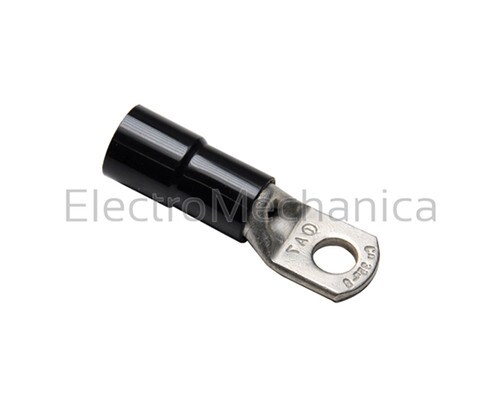

25x6mm INSULATED RING LUG (100)
R2,480.00
Supplier: Cembre
Supplier Code: 2418520
Pack Size: 100
Insulated crimping lugs for copper conductors
ANE-M series lugs manufactured from electrolytic copper tube annealed and tin plated, designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out.
| SERIES | ANE-M series |
| DESCRIPTION | Heavy duty insulated ring lug (Interior of sleeve funnel shaped to ensure complete and easy introduction of conductor strands) |
| CABLE (MM²) | 25 |
| Ø STUD (MM) | 6.4 |
| PALM WIDTH (MM) | 14 |
| MATERIAL | Electrolytic Copper - insulated sleeve: PA6.6 (-20 to 115°C) |
| PACK QUANTITY | 100 |
