AK1/CN-2A
M18 8mm NPN NC 10-30VDC PROXIMITY
R579.00
Supplier: MD Microdetectors
Supplier Code: AK1/CN-2A
Pack Size: 1

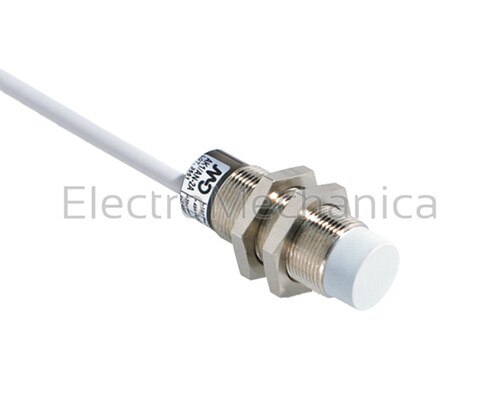

AK1 series M18 cylindrical proximity switches
Key features:
- Standard body 3 wire version
- Output: cable, M12 and plug cable exit
- ATEX models, cat. 3, available on request
- Models with complementary output (NO+NC)
- Wide range of models: standard, long distance
| SERIES | AK series |
| DESCRIPTION | M18 cylindrical inductive proimity sensor |
| SUPPLY PROTECTION | Short circuit and polarity reversal protection |
| INDEX PROTECTION IP | IP67 |
| LED INDICATION | Yellow LED output state |
| HOUSING MATERIAL | Nickel-plated brass |
| SUPPLY VOLTAGE | 10 - 30 VDC |
| FLUSH | No |
| NON-FLUSH | Yes |
| SENSING DISTANCE | 8 mm |
| PNP | No |
| NPN | Yes |
| NO | No |
| NC | Yes |
| CONNECTOR | Cable |
