AB1/AN-3A
M4 1mm NPN N/O 10-30VDC PROXIMITY
R1,420.00
Supplier: MD Microdetectors
Supplier Code: AB1/AN-3A
Pack Size: 1

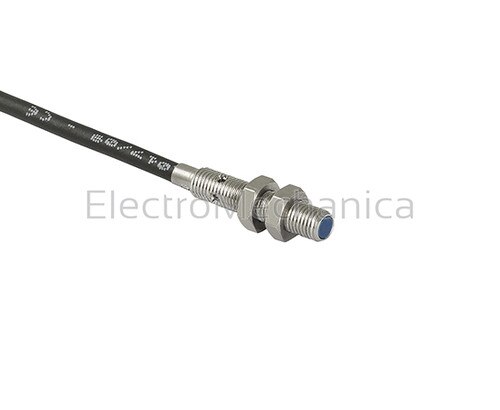

AB series M4 proximity switches (long sensing distance)
Key features:
- LED output indicator
- Output current: 100 mA
- Cable and M8 plug output
- Totally protected against electrical damages
- Housing: Nickel-plated brass (PFM/PFK - AISI 316L stainless steel housing)
| SERIES | AB series |
| DESCRIPTION | M4 standard body proximity switches |
| SENSING TYPE | Long sensing distance |
| SUPPLY PROTECTION | Short circuit and polarity reversal protection |
| INDEX PROTECTION IP | IP67 |
| LED INDICATION | Incorporated |
| HOUSING MATERIAL | Nickel-plated brass |
| SUPPLY VOLTAGE | 10 - 30 VDC |
| FLUSH | Yes |
| NON-FLUSH | No |
| SENSING DISTANCE (MM) | 1 mm |
| NPN | No |
| NPN | Yes |
| NO | Yes |
| NC | No |
