97058

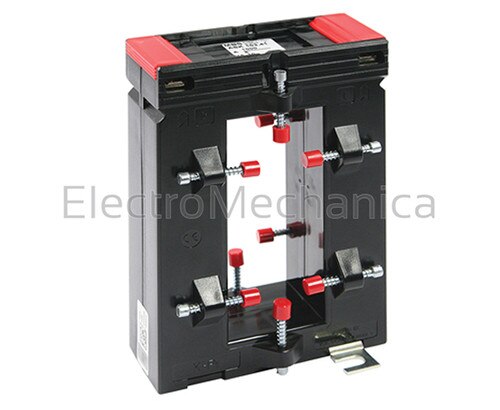

ASK 103.41 750/5A 5VA CT cl 1
R2,020.00
Supplier: MBS
Supplier Code: 97058
Pack Size: 1
Current transformers
General specifications
- Isolation class: E
- Maximum operating voltage: Um ‰Â¤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Rectangular shaped current transformers (5A secondary - class 1)
ASK 103.41 current transformers
| MODEL | ASK 103.41 |
| RATIO | 750/5A |
| ROUND CONDUCTOR (⌀) | 40 mm |
| PRIMARY BAR CONDUCTOR | 103 x 41 mm |
| DESCRIPTION | Rectangular shaped current transformer |
| CLASS | 1 |
| VA | 5 |
| DIMENSIONS (MM) | (H) 150 x (W) 99 x (D) 40 |
