91131-BLUE

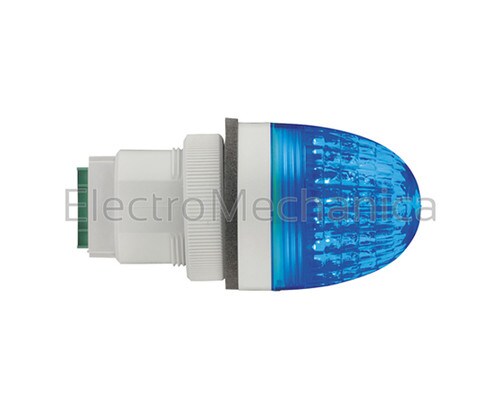

PANEL MOUNT SIGNAL DEVICE BLUE

R1,167.77
Supplier: Sirena
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

P40 series panel mount 30 mm signalling devices

P40 series small panel mounting signalling devices developed with multifunctional technology, permitting different levels of alarm selectable via independent electric contacts. Self-extinguishing PC body totally protected against vibration, dust and atmospheric elements.

Key features:

  • Multi-voltage: 12/24 VAC/DC (or) 48 - 240 VAC
  • 3 levels of alarm : steady - flashing - strobe (selectable via electrical contacts)
  • 4 bright LEDs, lense with 360° light diffusion with maximized frontal performance
  • Mounts through 30 mm hole secured with locking ring provided (internal depth max. 37 mm)
SERIES P40 S
LENS COLOURBlue
3 LEVELS OF ALARMSteady/flashing/strobe
SUPPLY VOLTAGE12 - 24 VAC/DC
DESCRIPTIONPanel mount LED signaling device
DIMENSIONS (MM) 41
DIMENSIONS (MM) EXT.46
INDEX PROTECTION IPIP66
