7T8100002401

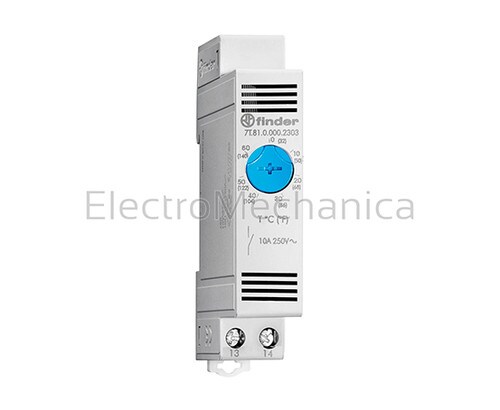

RAIL MNT PANEL THERMOSTAT 1 NC
R433.23
Supplier: Finder
Pack Size: 1
7T series - Snap action thermostatic bimetal sensor (used to control temperatures within enclosures)
Bimetal thermostats to control temperatures inside enclosures. Suitable for different applications, with close-on-rise (NO) or open-on rise (NC) contact for regulation of heating and ventilation equipment or to activate signalling devices.
Features:
- Small, compact size, 17.5 mm wide
- Enclosure PA66 self-extinguishing to UL 94V-0
- DIN rail (EN 60715) mountable
- IP20 protected screw terminals
- Applied standards EN 60730-1, UL approved UL873 and C22.2
| SERIES | 7T series |
| INDEX PROTECTION IP | IP20 protected screw terminals |
| TEMPERATURE RANGE | -20...+40°C |
| CONFIGURATION | 1 x NC |
| DESCRIPTION | Rail mount panel thermostat (red dial) |
| CERTIFICATION | EN 60730-1, UL approved UL873 and C22.2 |
| DIMENSIONS (MM) | (H) 86 x (W) 17.5 x (D) 48 |
