672.4116

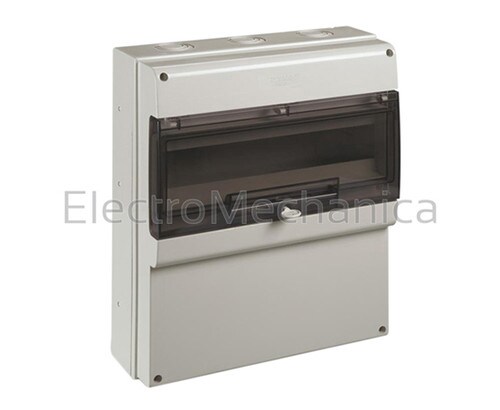

16 WAY IP66 SURF D/B +BLANK SECT.

R1,171.27
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

Back

Consumer units (distribution boards)

Domino series distribution boards are made in shockproof and self-extinguishing halogen-free thermoplastic matter and used for shunts in outdoor proof electric systems and the enclosure of small equipment, such as relays, timers, terminal boards, etc.

Domino series distribution boards

  • Non-ageing elastomer seals
  • Facility to accept earth and neutral terminals
  • Reversable hinged door (hinged from left or right side)
  • Adjustable DIN rail depth (can accept rail mounted MCCB's)
  • With a modern and attractive design it blends well into any seetting
  • Knock-outs on all sides (can be coupled to other enclosures using coupler glands)
  • Boards with additional blank component section (for mounting non modular devices)
  • Resistance to chemicals (weter, saline solutions, acids, bases, mineral oils) and weathering
SERIES DOMINO
NUMBER OF DIN MODULES16 (1 x 16)
DESCRIPTIONWith blank section (H) 150 x (D) 115 mm
DIMENSIONS (MM)(H) 400 x (W) 328 x (D) 140
