4941 3724

0.03-30A AUTO RECLOSE E/LEAK REL

R4,153.94
Supplier: Socomec
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

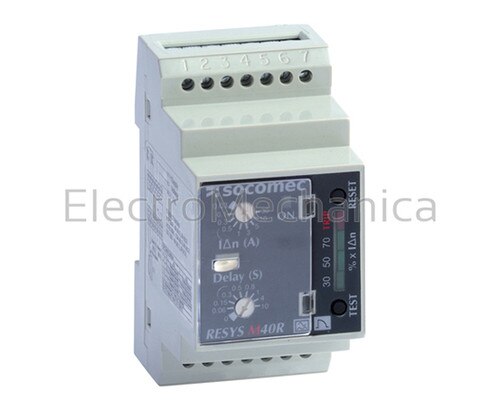

RESYS M40R with automatic reclosing (earth leakage protection)

M40R relay recloses the system up to six consecutive times after preselected time intervals. If the fault is still present after the sequence of six reclosing attempts, the relay is locked in alarm mode and a manual intervention will be required.

Features:

  • Time delay between two reclosings: 7.7 - 15 - 30 - 60 - 120 - 240 second
SERIES RESYS M40R
CURRENT SETTING I△n0.03 - 30A
TIME DELAY (SECOND)0 - 10
POWER SUPPLY115/230 VAC
MOUNTINGModular DIN rail (same format as MCB's) 44mm wide
TIME DELAY BETWEEN TWO RECLOSINGS7.7 - 15 - 30 - 60 - 120 - 240 seconds
DESCRIPTIONReclosing earth leakage relay
