42-5003

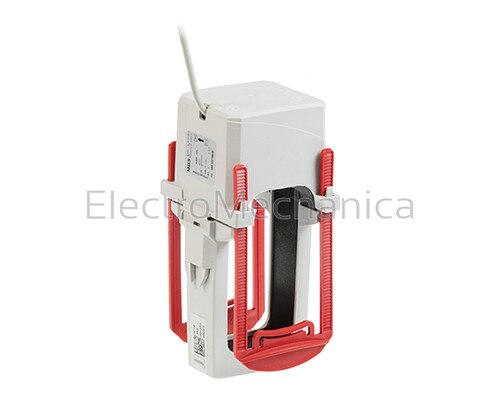

KBR 42 500/5 CLASS 1 SPLIT CORE
R2,270.00
Supplier: MBS
Supplier Code: 42-5003
Pack Size: 1
KBR series - Split-core current transformers
- The split measuring system facilitates simple installation into existing panel boards without additional mounting requirements. Simply open the locking mechanism of the current transformer place around the primary conductor and lock ensuring that the circuit is closed. Once secondary conductors are connected the unit is ready for operation.
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
- Delivered with 0.5m connection cable 2 x 1.5 mm2
KBR 42 - Split-core current transformers (5A secondary - class 1)
| MODEL | KBR 42 |
| RATIO | 500/5A |
| CONDUCTOR (⌀) | 42.4 mm |
| DESCRIPTION | Split core current transformer |
| CLASS | 1 |
| VA | 5 |
| DIMENSIONS (MM) | (H) 96 x (W) 67 x (D) 69 |
