302270240010

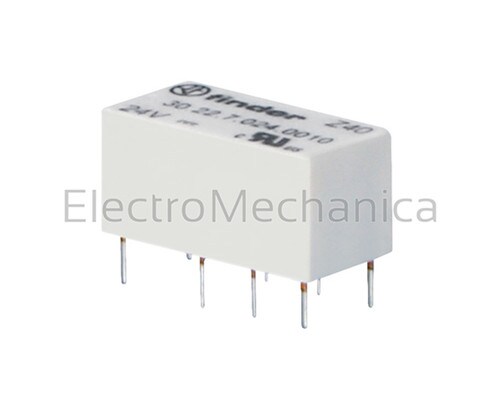

2A 2CO SEALED DIL PCB RELAY 24VDC
R78.02
Supplier:
Pack Size: 1
PCB mount relays
32 series sub-miniature low profile relay
- Wash tight: RT III
- Sensitive DC coil: 200 mW
- 2 Pole changeover contacts
- Low level switching capability
- Cadmium Free contact material
- Subminiature: - industry standard DIL package
| SERIES | 30 series |
| SWITCH CURRENT | 2A |
| DESCRIPTION | Sealed DIL PCB relay |
| CONTACT | 2 changeover |
| PIN PITCH | 5.08 mm |
| COIL VOLTAGE | 24 VDC |
| DIMENSIONS (MM) | 11.4 x 20.3 x 10.1 |
