30022
WSK 30 5/5A PRIMARY WOUND CT cl 1
R1,330.00
Supplier: MBS
Supplier Code: 30022
Pack Size: 1
Current transformers
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ‰Â¤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Primary wound current transformers (5A secondary - class 1)

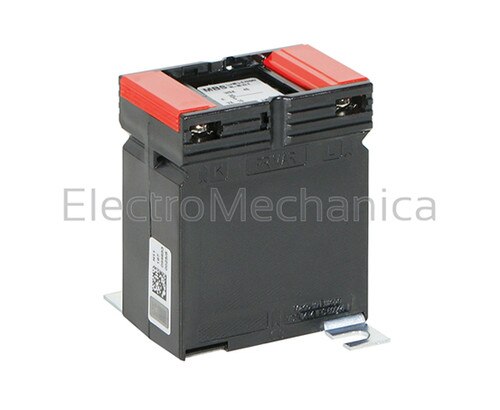

WSK 30 primary wound current transformers
| MODEL | WSK 30 |
| RATIO | 5/5A |
| DESCRIPTION | Primary wound current transformer |
| CLASS | 1 |
| VA | 5 |
| DIMENSIONS (MM) | (H) 79 x (W) 61 x (D) 35 |
