28-5002

KBR 28 300/5 CLASS 1 SPLIT CORE

R2,008.92
Supplier:
Pack Size: 1
Back

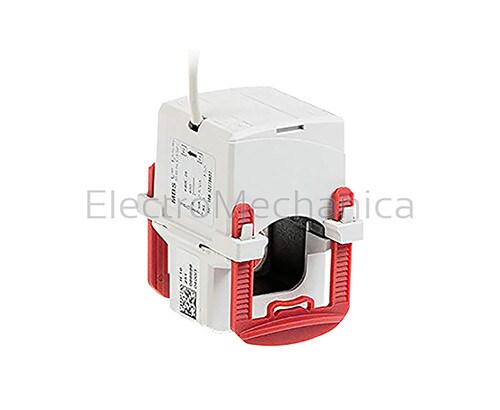

KBR series - Split-core current transformers

  • The split measuring system facilitates simple installation into existing panel boards without additional mounting requirements. Simply open the locking mechanism of the current transformer place around the primary conductor and lock ensuring that the circuit is closed. Once secondary conductors are connected the unit is ready for operation.
  • MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
  • Delivered with 0.5m connection cable 2 x 1.5 mm2

KBR 28 - Split-core current transformers (5A secondary - class 1)

MODELKBR 28
RATIO300/5A
CONDUCTOR (⌀)26 mm
DESCRIPTIONSplit core current transformer
CLASS1
VA1.5
DIMENSIONS (MM)(H) 79.5 x (W) 49 x (D) 59
