248.3297

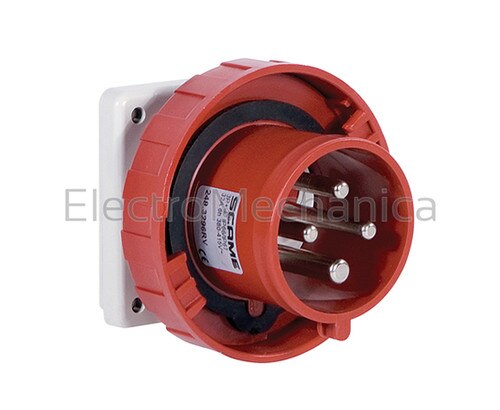

32A 3P+N+E IP67 FLUSH APPL. INLET

R418.83
Supplier: Scame
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

Industrial plugs and sockets

Optima series

Appliance inlets (male pins - accept female connector)

Panel mount (straight inlet)

SERIES OPTIMA
AMPERAGE32A
INSULATED VOLTAGE 690 VAC
OPERATING TEMPERATURE-25 - +40°C (max operating temperature +60°C)
GLOW WIRE TEST650/850°C
MATERIAL Engineering plastic (halogen free)
NUMBER OF POLES3P+N+E
IMPACT RESISTANCEIK08 (1.7kg with a striking energy of 2J)
PIN CONFIGURATION5pin
INDEX PROTECTION IPIP67/8/9
DESCRIPTIONAppliance inlet
FLANGE SIZE75 x 75
