242.1696

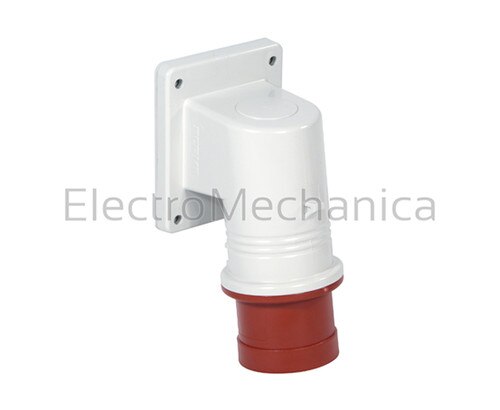

16A 3P+E IP54 S/MNT APP INLET 90D
R209.00
Supplier: Scame
Supplier Code: 242.1696
Pack Size: 1
Industrial plugs and sockets
Eureka series(appliance inlets - angled 90° inlet)
Eureka Series industrial plugs and sockets are designed for cable-end or stationary connection of electrical equipment
Features:
- Colour-coded for fast identification of the rated voltage
- Patented technical features allow quick and easy cabling.
- High resistance to harmful agents such as water, dirt, grease, chemicals.
- Different contact configurations ensure prevention of connecting devices of different rated voltages.
- High degree of protection against the ingress of solid matter or water through the use of improved sealing methods.
- High degree of protection against harmful contacts since the earthing contact is the first to be established and the last to be broken.
| SERIES | EUREKA |
| AMPERAGE | 16A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 3P+E |
| IMPACT RESISTANCE | IK07 (0.5kg with a striking energy of 2J) |
| PIN CONFIGURATION | 4pin |
| INDEX PROTECTION IP | IP44 |
| DESCRIPTION | Appliance inlet |
| CABLE OUTLET | 70 x 87 |
| CABLE INLET | External cable stay with tulip clamping IP67 gland |
